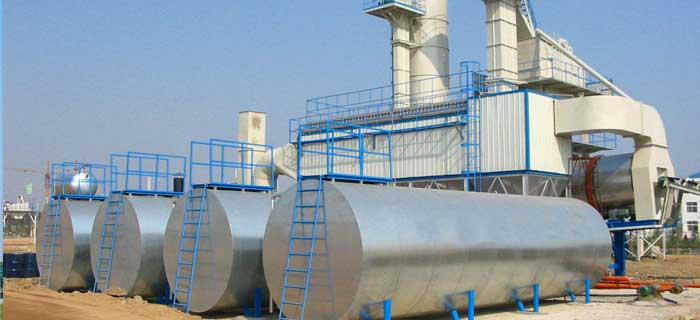

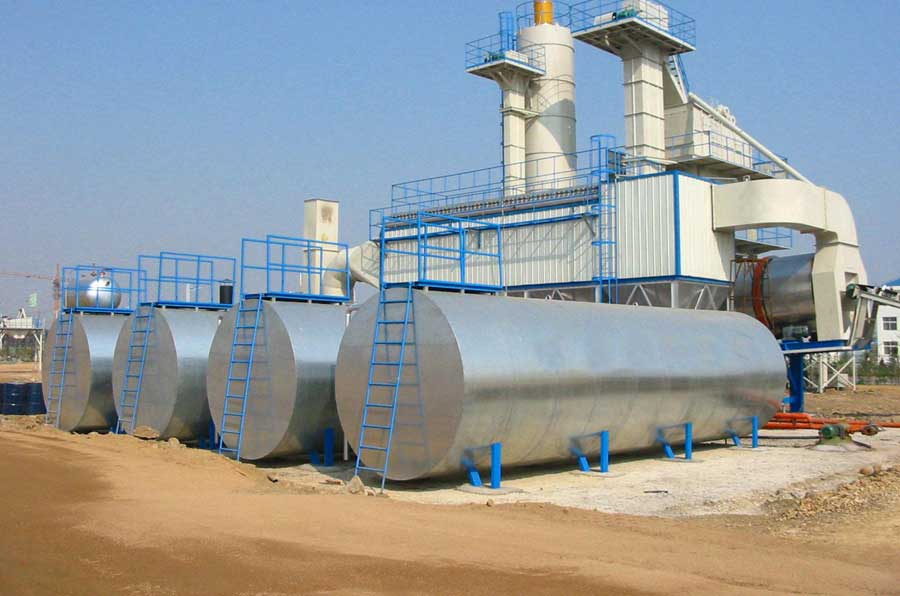

LB 500 Stationary Asphalt Mixing Plant
Haomei is recognized by the industry with high-quality services while providing high-quality products for customers. The Company has a virtuous professional service team with skilled technologies, which is ready to provide high-quality services for users so as to meet the users’ demands.
Facing market competition and social development, Haomei raises the service quality and level fully based on the starting point of “The Users’ Benefit Takes The First Place”, and has made service charters take “Life-long Follow-up Service” as core. Ya-long won good reputation by providing excellent services, and furthermore developed deep friendship with users. Many users sent the letters of thanks and silk banners to Ya-long. For those achievements, Haomei will provide more excellent services to return customers and society.
LB Series asphalt concrete mixing plant is an excellent product which combined with advantages of similar products in China and Oversea, designed and produced elaborately according to our national conditions. It has reliable performance, good stability, and easy to be maintained It adopts modular design, has the characters of fast installation, convenient transportation,short installation time, high producing efficiency.
Technical Parameters
| Model | LB500 | |
|---|---|---|
| Capacity | 40t/h (standard working condition) | |
| Mixer Capacity | 500kg/batch | |
| Drying Drum | Φ1200*5500mm | |
| Fuel Consumption | Diesel: 5.5-7kg/t; Coal:10kg/t | |
| Measurement Accuracy | Aggregate | ±0.5% |
| Filler | ±0.5% | |
| Bitumen | ±0.25% | |
| Finished Asphalt Temperature | 130℃-165℃ | |
| Dust Collector | gravitational dust collector & Second baghouse dust collector | |
| Air Emissions | ≤20mg/Nm³ | |
| Dark exhaust standard | Ringelmann I | |
| Working room noise | ≤70db(A) | |
| Environment noise | ≤80db(A) | |
| Operation | Full Auto/Manual Operation | |
| Total Installation Power | ≈153kW | |
| Voltage | 220V/380V-50Hz (adjustable) | |
| Plant Covering Area | Length: 25m; width: 20m; max height point: 12m | |
Features of Asphalt Mixing Plant
1.The original modular design of the mixing plant makes transport and installation work quick and convenient. It can separate extra-large flotsam from usable stuff.
2. The loop belt feeder for the measuring hopper has a frequency-conversion speed regulator which can provide high and low speed. Its original structure facilitates belt change and makes material feeding more fluent, which reduces power consumption.
3. The high-efficiency and heat-preservation drying drum and the special vanes make heat exchange more sufficient. Moreover, the high-efficiency and energy-saving imported burner can use both heavy oil and diesel, which reduces energy consumption.
4. The vibrating screen adopts the linear and completely-closed design with the vibrator placed outside. The sieving efficiency is high, the maintenance and changing of screen is easy, and the imported bearings are more reliable.
5. The main mixing machine designed with European technology has double reducers with a high-speed synchronization capacity. Accurately-weighed asphalt can be directly pumped into the agitating kettle and powder material can be conveyed into the agitating kettle through the helix, which makes agitating more even and speedy. Besides, it has an opening to add wood fiber and an inlet to add used material to be recycled.
